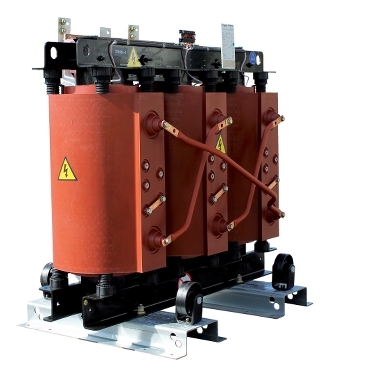

Schneider SCB12-630 Cast-Resin Dry-type Transformer
|
Type
|
|
Rated Power [kVA]
|
|
No-load Loss [W]
|
|
Load Loss 120℃ [W]
|
|
Short-circuit Impedance [%]
|
|
L [mm]
|
|
W [mm]
|
|
H [mm]
|
|
SCB10-315
|
|
315
|
|
880
|
|
3470
|
|
4
|
|
1233
|
|
795
|
|
1346
|
|
SCB10-400
|
|
400
|
|
980
|
|
3990
|
|
4
|
|
1296
|
|
796
|
|
1376
|
|
SCB10-500
|
|
500
|
|
1160
|
|
4880
|
|
4
|
|
1365
|
|
808
|
|
1391
|
|
SCB10-630
|
|
630
|
|
1300
|
|
5960
|
|
6
|
|
1446
|
|
821
|
|
1376
|
|
SCB10-800
|
|
800
|
|
1520
|
|
6960
|
|
6
|
|
1590
|
|
845
|
|
1466
|
|
SCB10-1000
|
|
1000
|
|
1770
|
|
8130
|
|
6
|
|
1695
|
|
862
|
|
1466
|
|
SCB10-1250
|
|
1250
|
|
2090
|
|
9690
|
|
6
|
|
1605
|
|
1070
|
|
1801
|
|
SCB10-1600
|
|
1600
|
|
2450
|
|
11730
|
|
6
|
|
1731
|
|
1070
|
|
1836
|
|
SCB10-2000
|
|
2000
|
|
3050
|
|
14450
|
|
6
|
|
1791
|
|
1070
|
|
1896
|
|
SCB10-2500
|
|
2500
|
|
3600
|
|
17170
|
|
6
|
|
2031
|
|
1195
|
|
2016
|
|
SCB10-3150
|
|
3150
|
|
4300
|
|
22000
|
|
7
|
|
2165
|
|
1195
|
|
2235
|
|
SCB11-315
|
|
315
|
|
790
|
|
3470
|
|
4
|
|
1233
|
|
795
|
|
1346
|
|
SCB11-400
|
|
400
|
|
880
|
|
3990
|
|
4
|
|
1296
|
|
796
|
|
1376
|
|
SCB11-500
|
|
500
|
|
1040
|
|
4880
|
|
4
|
|
1365
|
|
808
|
|
1391
|
|
SCB11-630
|
|
630
|
|
1170
|
|
5960
|
|
6
|
|
1446
|
|
821
|
|
1376
|
|
SCB11-800
|
|
800
|
|
1360
|
|
6960
|
|
6
|
|
1590
|
|
845
|
|
1486
|
|
SCB11-1000
|
|
1000
|
|
1590
|
|
8130
|
|
6
|
|
1695
|
|
862
|
|
1486
|
|
SCB11-1250
|
|
1250
|
|
1880
|
|
9690
|
|
6
|
|
1605
|
|
1070
|
|
1801
|
|
SCB11-1600
|
|
1600
|
|
2200
|
|
11730
|
|
6
|
|
1731
|
|
1070
|
|
1851
|
|
SCB11-2000
|
|
2000
|
|
2740
|
|
14450
|
|
6
|
|
1791
|
|
1070
|
|
1896
|
|
SCB11-2500
|
|
2500
|
|
3240
|
|
17170
|
|
6
|
|
2031
|
|
1195
|
|
2046
|
|
SCB11-3150
|
|
3150
|
|
3870
|
|
22000
|
|
7
|
|
2090
|
|
1195
|
|
2155
|
|
SCB12-315
|
|
315
|
|
705
|
|
3470
|
|
4
|
|
1182
|
|
795
|
|
1446
|
|
SCB12-400
|
|
400
|
|
785
|
|
3990
|
|
4
|
|
1233
|
|
795
|
|
1556
|
|
SCB12-500
|
|
500
|
|
930
|
|
4880
|
|
4
|
|
1320
|
|
799
|
|
1556
|
|
SCB12-630
|
|
630
|
|
1070
|
|
5880
|
|
4
|
|
1374
|
|
810
|
|
1561
|
|
SCB12-630
|
|
630
|
|
1040
|
|
5960
|
|
6
|
|
1374
|
|
810
|
|
1541
|
|
SCB12-800
|
|
800
|
|
1215
|
|
6960
|
|
6
|
|
1479
|
|
945
|
|
1611
|
|
SCB12-1000
|
|
1000
|
|
1415
|
|
8130
|
|
6
|
|
1563
|
|
1070
|
|
1731
|
|
SCB12-1250
|
|
1250
|
|
1670
|
|
9690
|
|
6
|
|
1677
|
|
1070
|
|
1816
|
|
SCB12-1600
|
|
1600
|
|
1960
|
|
11730
|
|
6
|
|
1767
|
|
1070
|
|
1891
|
|
SCB12-2000
|
|
2000
|
|
2440
|
|
14450
|
|
6
|
|
1845
|
|
1070
|
|
2046
|
|
SCB12-2500
|
|
2500
|
|
2880
|
|
17170
|
|
6
|
|
1959
|
|
1195
|
|
2326
|
|
SCB13-315
|
|
315
|
|
635
|
|
3125
|
|
4
|
|
1218
|
|
795
|
|
1526
|
|
SCB13-400
|
|
400
|
|
705
|
|
3590
|
|
4
|
|
1242
|
|
795
|
|
1541
|
|
SCB13-500
|
|
500
|
|
835
|
|
4390
|
|
4
|
|
1365
|
|
807
|
|
1556
|
|
SCB13-630
|
|
630
|
|
965
|
|
5290
|
|
4
|
|
1431
|
|
945
|
|
1606
|
|
SCB13-630
|
|
630
|
|
935
|
|
5365
|
|
6
|
|
1482
|
|
945
|
|
1571
|
|
SCB13-800
|
|
800
|
|
1095
|
|
6265
|
|
6
|
|
1554
|
|
1070
|
|
1666
|
|
SCB13-1000
|
|
1000
|
|
1275
|
|
7315
|
|
6
|
|
1566
|
|
1070
|
|
1751
|
|
SCB13-1250
|
|
1250
|
|
1505
|
|
8720
|
|
6
|
|
1731
|
|
1070
|
|
1876
|
|
SCB13-1600
|
|
1600
|
|
1765
|
|
10555
|
|
6
|
|
1794
|
|
1070
|
|
2016
|
|
SCB13-2000
|
|
2000
|
|
2195
|
|
13005
|
|
6
|
|
1911
|
|
1195
|
|
2091
|
|
SCB13-2500
|
|
2500
|
|
2590
|
|
15455
|
|
6
|
|
2178
|
|
1195
|
|
2131
|
|
SCBH15-200
|
|
200
|
|
200
|
|
2520
|
|
4
|
|
1470
|
|
1000
|
|
1225
|
|
SCBH15-250
|
|
250
|
|
230
|
|
2750
|
|
4
|
|
1620
|
|
1000
|
|
1260
|
|
SCBH15-315
|
|
315
|
|
280
|
|
3470
|
|
4
|
|
1690
|
|
1000
|
|
1285
|
|
SCBH15-400
|
|
400
|
|
310
|
|
3980
|
|
4
|
|
1600
|
|
1050
|
|
1255
|
|
SCBH15-500
|
|
500
|
|
360
|
|
4880
|
|
4
|
|
1720
|
|
1050
|
|
1285
|
|
SCBH15-630
|
|
630
|
|
410
|
|
5950
|
|
6
|
|
1940
|
|
1050
|
|
1295
|
|
SCBH15-800
|
|
800
|
|
480
|
|
6950
|
|
6
|
|
1920
|
|
1100
|
|
1290
|
|
SCBH15-1000
|
|
1000
|
|
550
|
|
8130
|
|
6
|
|
2060
|
|
1200
|
|
1285
|
|
SCBH15-1250
|
|
1250
|
|
650
|
|
9690
|
|
6
|
|
2170
|
|
1200
|
|
1320
|
|
SCBH15-1600
|
|
1600
|
|
760
|
|
11720
|
|
6
|
|
2290
|
|
1200
|
|
1460
|
|
SCBH15-2000
|
|
2000
|
|
1000
|
|
14450
|
|
6
|
|
2280
|
|
1200
|
|
1585
|
|
SCBH15-2500
|
|
2500
|
|
1200
|
|
17170
|
|
6
|
|
2400
|
|
1200
|
|
1895
|
